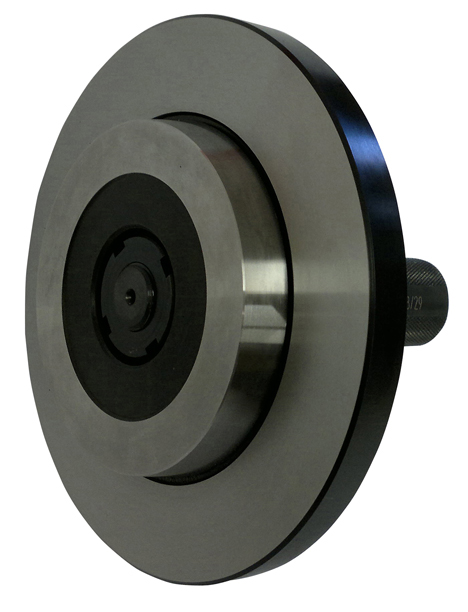

Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 Order-No. 83 size 4 SMT-MESSZEUGE
Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 sideview Order-No. 83 size 4 SMT-MESSZEUGE
Preview: Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 Order-No. 83 size 4 SMT-MESSZEUGE
Preview: Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 sideview Order-No. 83 size 4 SMT-MESSZEUGE
Taper Plug Gauge Size 4 DIN 55028 / 55029 for lathe chuck flange
Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 Order-No. 83 size 4 SMT-MESSZEUGE
Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 sideview Order-No. 83 size 4 SMT-MESSZEUGE
Mobile Preview: Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 Order-No. 83 size 4 SMT-MESSZEUGE
Mobile Preview: Taper Plug Gauge Size 4 for lathe chuck flange DIN 55028 - 55029 sideview Order-No. 83 size 4 SMT-MESSZEUGE

Taper Plug Gauge Size 4 DIN 55028 / 55029 for lathe chuck flange

Product No.:
83/4
on request on request
Weight:
4.8 kg per piece
Price on request
Description
Order-No. 83/4
  • from wear-resistant special tool steel
  • hardened, tempered, ground, lapped
  • Taper Plug Gauge for lathe chuck flange Size 4 to DIN 55028/29 (before DIN 55023)
  • cone pitch 1:4
  • reference diameter Ø 63,516 mm ± 0,0025 IT3 to DIN 7151
  • taper angle tolerance is AT5- according to DIN 7178
  • inclusive workshop test-calibration-certificate

Quality " Made in Germany "

Taper plug gauge for checking of chuck flange!

Do you need a special custom-made from taper plug gauge?
We are looking forward to receiving your inquiry with drawing and complete information and dimensions!
