Accessories for Gauge Blocks

Gauge holder with 5 block gauges for Micrometer checking
Gauge holder with 5 block gauges for Micrometer checking
993.265
  • for holding checking block gauge for micrometer
  • Special gauge block holder with 5 Pc. Single gauge blocks Size
    5,1 / 10,3 / 15 / 20,2 / 25 mm
  • accuracy degree 1 DIN EN ISO 3650
  • with granite base
  • delivery without micrometer
Price on request
Gauge holder with 10 block gauges for Micrometer checking
Gauge holder with 10 block gauges for Micrometer checking
993.270
  • for holding checking block gauge for micrometer
  • Special gauge block holder with 10 Pc. Single gauge blocks Size
    2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15 / 17,6 / 20,2 / 22,8 / 25 mm
  • accuracy degree 1 DIN EN ISO 3650
  • with granite base
  • delivery without micrometer
Price on request
SMT-MESSZEUGE Order-No. 993.271 Holder for micrometer checking gauge block set
Holder for micrometer checking gauge block set
Order-No. 993.271
  • made of aluminum with steel base
  • special gauge blocks holder for holding up to 10 individual gauge blocks
  • delivery without gauge block and without optical flat
  • in plastic case including Allen key for clamping the final dimensions
​Gauge block holder (clamp holder) for the simple recording of special gauge blocks set at the micrometer checking !!
179,00 EUR
plus 19% tax excl. Shipping costs
SMT-MESSZEUGE Article-No. 993.014
Gauge block accessories set, 12 pieces, in wooden case
Order-No. 993.014
  • for using of gauge blocks to measuring or adjustment of measuring instruments
  • set contents:
    1x gauge block holder 0 - 50 mm
    1x gauge block holder 0 - 100 mm
    1x gauge block holder 100 - 250 mm
    1x pair jaws R 2 x 10
    1x pair jaws R 5 x 15
    1x pair jaws R 10 x 40
    1x scriber point
    1x center point
    1x base
  • weight approx. 3,4 kg
  • in case / box
545,00 EUR
plus 19% tax excl. Shipping costs
SOLD OUT

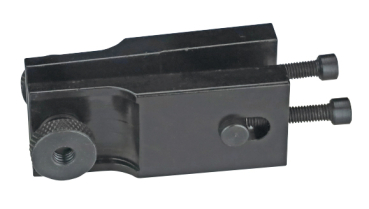

Gauge block connector
Order-No. 993.032
  • for connection of block gauges from 125 mm
  • without block gauge
69,00 EUR
plus 19% tax excl. Shipping costs
Measuring jaws R 2,5x10 mm for gauge block holder
Measuring jaws R 2,5x10 mm for gauge block holder
Order-No. 993.036
  • made of steel
  • 1 pair measuring jaws R 2,5 x 10
  • size L x B x H = 40 x 9 x 8 mm
  • with cylindrical shoulder for internal and external measurements
68,00 EUR
plus 19% tax excl. Shipping costs
Measuring jaws R 5x15 mm for gauge block holder
Measuring jaws R 5x15 mm for gauge block holder
Order-No. 993.037
  • made of steel
  • 1 pair measuring jaws R 5 x 15
  • size L x B x H = 45 x 9 x 8 mm
  • with cylindrical shoulder for internal and external measurements
68,00 EUR
plus 19% tax excl. Shipping costs
Measuring jaws R 10x20 mm for gauge block holder
Measuring jaws R 10x20 mm for gauge block holder
Order-No. 993.038
  • made of steel
  • 1 pair measuring jaws R 10 x 40
  • size L x B x H = 70 x 9 x 10,5 mm
  • with cylindrical shoulder for internal and external measurements
68,00 EUR
plus 19% tax excl. Shipping costs
smt-messzeuge_993058
Plane parallel measuring jaws, 75 x 9 x 15 mm
Order-No. 993.058
  • made of steel
  • 1 pair plane measuring jaws
  • size L x B x H = 75 x 9 x 15 mm
  • only for external measurements
45,00 EUR
plus 19% tax excl. Shipping costs
Plane parallel measuring jaws, 110 x 9 x 25 mm
Plane parallel measuring jaws, 110 x 9 x 25 mm
Order-No. 993.046
  • made of steel
  • 1 pair plane measuring jaws
  • size L x B x H = 110 x 9 x 25 mm
  • only for external measurements
68,00 EUR
plus 19% tax excl. Shipping costs
Marking point, Scriber 15 mm
Marking point, Scriber 15 mm
Order-No. 993.055
  • made of steel
  • scriber 15 mm
  • L x B x H = 43 x 9 x 8 mm
39,00 EUR
plus 19% tax excl. Shipping costs
Center point, Ø 8 x 8 mm
Center point, Ø 8 x 8 mm
Order-No. 993.056
  • made of steel
  • center point 8 x 8 mm
  • L x B x H = 45 x 9 x 8 mm
65,00 EUR
plus 19% tax excl. Shipping costs
SMT-MESSZEUGE Order-No. 988.028 Gauge Block Set for micrometer with holder
Gauge block set for checking micrometer with holder
Order-No. 988.028
  • holder for gauge block made of aluminium
  • made of special steel, hardened
  • holder and gauge block set for micrometer checking 0 - 25 mm to DIN 863 VDI / VDE / DGQ 2618 with 11 pieces degree 1 size
    2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15 / 17,6 / 20,2 / 22,8 / 25 mm
    and optical flat Ø 30 mm degree 1
  • accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
  • with identity number
  • in ABS case
237,00 EUR
plus 19% tax excl. Shipping costs
SMT-MESSZEUGE Order-No. 993.500 measuring ball set from steel 50 piece Ø 1-25 mm
TOP
Measuring ball set steel 50 piece ball-size 1-25 mm
Order-No. 993.500
  • made of hardened steel HRC 60 ± 2
  • 50-piece gauge ball set
  • measuring ball diameter 1 - 25 mm step 1 mm
  • 1 pair of measuring balls (two balls of each size)
    Ø 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 /
    15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 mm
  • accuracy to factory standard 3µ = 0,003 mm
  • in ABS case
125,00 EUR
plus 19% tax excl. Shipping costs
1 to 14 (from a total of 14)
