Gauge Block Set for Micrometer Control

• made of aluminum with steel base
• special gauge blocks holder for holding up to 10 individual gauge blocks
• delivery without gauge block and without optical flat
• in plastic case including Allen key for clamping the final dimensions

• made of special steel, hardened

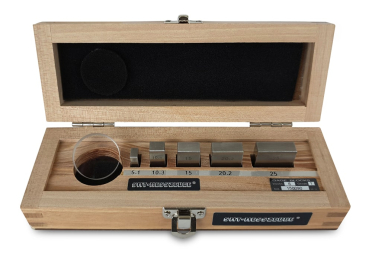

• gauge block set for micrometer checking 0 - 25 mm to DIN 863 VDI / VDE / DGQ 2618 with 5 pieces degree 1 size
  5.1 / 10.3 / 15 / 20.2 / 25 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case
• including a current German DAkkS calibration certificate (German + English)
  from a German accredited DAkkS test laboratory !!

Parallel gauge block set, with 5 individual special gauge blocks, especially for checking and calibrating
of micrometers (micrometers) up to 25 mm measuring range according to VDI / VDE / DGQ guideline 2618 sheet 5

• made of special steel, hardened

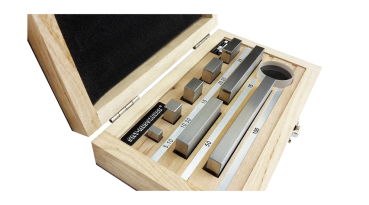

• gauge block set for micrometer checking 0 - 100 mm to DIN 863 VDI / VDE / DGQ 2618 with 8 pieces degree 1 size
  5.1 / 10.3 / 15 / 20,2 / 25 / 50 / 75 / 100 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case
• including a current German DAkkS calibration certificate (German + English)
  from a German accredited DAkkS test laboratory !!

Eight separate special gauge blocks make up this parallel gauge block set,
which is specifically designed for verifying and calibrating micrometers (micrometers)
with a measurement range of up to 100 mm in accordance with VDI/VDE/DGQ guideline 2618 sheet 5.

• made of special steel, hardened
• gauge block set for micrometer checking 0 - 25 mm to DIN 863 VDI / VDE / DGQ 2618 with 5 pieces degree 1 size
  5.1 / 10.3 / 15 / 20.2 / 25 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case

• made of special steel, hardened
• gauge block set for micrometer checking 0 - 25 mm to DIN 863 VDI / VDE / DGQ 2618
  with 10 pieces degree 1 size
  2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15 / 17,6 / 20,2 / 22,8 / 25 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case

• made of special steel, hardened
• gauge block set for micrometer checking 0 - 25 mm to DIN 863 VDI / VDE / DGQ 2618
  with 11 pieces degree 1 size
  1,4 / 2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15 / 17,6 / 20,2 / 22,8 / 25 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case

• made of special steel, hardened
• gauge block set for micrometer checking 0 - 25 mm to DIN 863 VDI / VDE / DGQ 2618
  with 12 pieces degree 1 size
  1,4 / 2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15 / 17,6 / 20,2 / 22,8 / 25 mm
  and optical flat Ø 30 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case

• made of special steel, hardened
• gauge block set for micrometer checking 0 - 100 mm to DIN 863 VDI / VDE / DGQ 2618
  with 5 pieces degree 1 size
  1,4 / 2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15 / 17,6 / 20,2 / 22,8 / 25 / 50 / 75 / 100 mm
  and optical flat Ø 30 mm
• accuracy / tolerance class to DIN EN ISO 3650/1 (before DIN 861/1)
• with identity number
• in wooden case
