Order-No. 293.550.IP65

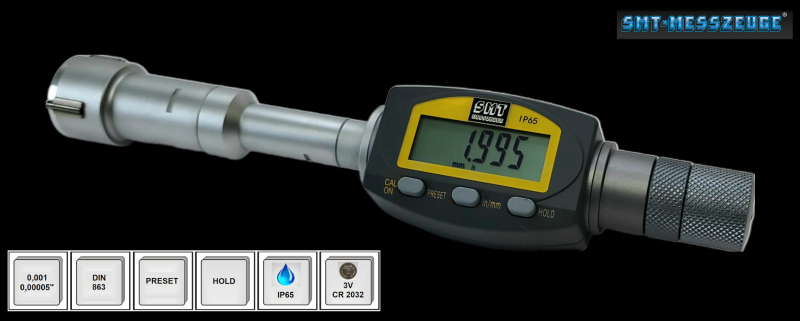

Digital 3-point internal micrometer set for measuring 3-point measurements. This set covers a large measuring range and
is ideal for measurements on blind bores. The respective different digital 3-point internal micrometers are self-centering
and self-aligning in the bores to be measured. The clearance dimension C can be found in the drawing of the internal
micrometer. An extension for measurements on deeper bores and setting rings for calibrating the 3-point digital internal
micrometer are also included in the scope of delivery.
- IP65 protection class (water + dust)
- with large digital LCD display and readings
- digital reading 0,001 mm or 0,00005"
- total measuring range 20 - 50 mm with four individual digital three-point internal micrometers divided into:
measuring range 20 - 25 mm, dimension = (C) 0,5 mm and (A) 90 mm
measuring range 25 - 30 mm, dimension = (C) 0,5 mm and (A) 90 mm
measuring range 30 - 40 mm, dimension = (C) 0,5 mm and (A) 105 mm
measuring range 40 - 50 mm, dimension = (C) 0,5 mm and (A) 105 mm
- distance to ground (C) 0,5 mm
- accuracy according to DIN 863 = 0,005 mm ( at full contact of the measuring faces !! )
- ON / CAL button
- Zeroing (reset) in any position
- switchable mm/inch
- Preset function (setting a numerical value)
- Hold function (measured data can be kept)
- with button cell CR 2032 voltage 3V
- with data output (RB 6)

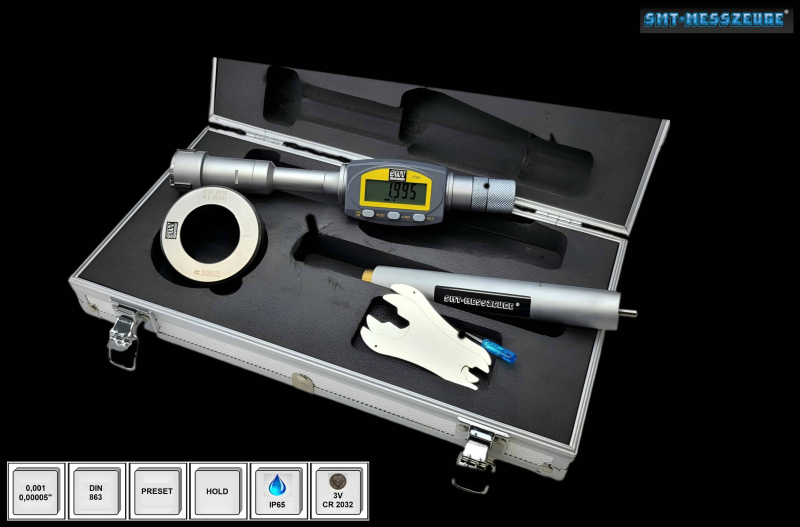

- with setting ring gauge Ø 25 + Ø 40 mm
- with one extension length 150 Ø 15,8 mm for measuring deeper holes
- with key and screwdriver
- Identification number
- with instruction manual
- in case / box
