1
SOLD OUT

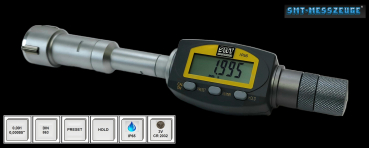

Digital three point internal micrometer, measuring range 6-8 mm
Order-No. 293.008
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
reading 0,001 mm
range 6 - 8 mm
distance to ground (C) 1 mm
dimension (L) 40 mm
accuracy 0,004 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 8 mm
with extension, length 50 Ø 5,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.008
Shippingtime:
on request
Weight:
0,7
kg per piece
289,00 EUR
Product No.: 293.008
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 6-8 mm for blind hole
290.008
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.008
Shippingtime:
on request
Weight:
0,7
kg per piece
315,00 EUR
Product No.: 290.008
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 8-10 mm
Order-No. 293.010
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
reading 0,001 mm
range 8 - 10 mm
distance to ground (C) 1 mm
dimension (L) 40 mm
accuracy 0,004 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 8 mm
with extension, length 50 Ø 5,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.010
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
0,7
kg per piece
298,00 EUR
Product No.: 293.010
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 8-10 mm for blind hole
290.010
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.010
Shippingtime:
on request
Weight:
0,7
kg per piece
315,00 EUR
Product No.: 290.010
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 10-12 mm
Order-No. 293.012
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
reading 0,001 mm
range 10 - 12 mm
distance to ground (C) 1 mm
dimension (L) 40 mm
accuracy 0,004 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 10 mm
with extension, length 50 Ø 5,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.012
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
0,7
kg per piece
298,00 EUR
Product No.: 293.012
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 10-12 mm for blind hole
290.012
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.012
Shippingtime:
on request
Weight:
0,9
kg per piece
315,00 EUR
Product No.: 290.012
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 12-16 mm
Order-No. 293.016
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 12 - 16 mm
distance to ground (C) 0,4 mm
dimension (L) 45 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 12 mm
with extension, length 100 Ø 11,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.016
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
0,7
kg per piece
262,00 EUR
Product No.: 293.016
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 12-16 mm for blind hole
290.016
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.016
Shippingtime:
on request
Weight:
1
kg per piece
310,00 EUR
Product No.: 290.016
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 16-20 mm
Order-No. 293.020
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 16 - 20 mm
distance to ground (C) 0,4 mm
dimension (L) 45 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 16 mm
with extension, length 100 Ø 11,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.020
Shippingtime:
approximately 3 - 5 days
(abroad may vary)
Weight:
0,7
kg per piece
270,00 EUR
Product No.: 293.020
Shippingtime:
approximately 3 - 5 days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 16-20 mm for blind hole
290.020
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.020
Shippingtime:
on request
Weight:
1
kg per piece
310,00 EUR
Product No.: 290.020
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 20-25 mm
Order-No. 293.025
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 20 - 25 mm
distance to ground (C) 0,4 mm
dimension (L) 53 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 20 mm
with extension, length 150 Ø 16,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.025
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
0,7
kg per piece
305,00 EUR
Product No.: 293.025
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 20-25 mm for blind hole
290.025
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.025
Shippingtime:
on request
Weight:
1,3
kg per piece
339,00 EUR
Product No.: 290.025
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 25-30 mm
Order-No. 293.030
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 25 - 30 mm
distance to ground (C) 0,4 mm
dimension (L) 53 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 25 mm
with extension, length 150 Ø 16,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.030
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
0,7
kg per piece
305,00 EUR
Product No.: 293.030
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 25-30 mm for blind hole
290.030
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.030
Shippingtime:
on request
Weight:
1,3
kg per piece
339,00 EUR
Product No.: 290.030
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer, measuring range 30-40 mm
Order-No. 293.040
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 30 - 40 mm
distance to ground (C) 0,4 mm
dimension (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 30 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.040
Shippingtime:
on request
Weight:
0,7
kg per piece
325,00 EUR
Product No.: 293.040
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 30-40 mm for blind hole
290.040
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.040
Shippingtime:
on request
Weight:
2,5
kg per piece
375,00 EUR
Product No.: 290.040
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer, measuring range 40-50 mm
Order-No. 293.050
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 40 - 50 mm
distance to ground (C) 0,4 mm
dimension (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 40 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.050
Shippingtime:
on request
Weight:
0,7
kg per piece
335,00 EUR
Product No.: 293.050
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 40-50 mm for blind hole
290.050
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.050
Shippingtime:
on request
Weight:
2,6
kg per piece
375,00 EUR
Product No.: 290.050
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer, measuring range 50-63 mm
Order-No. 293.063
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 50 - 63 mm
distance to ground (C) 0,5 mm
dimension (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 50 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.063
Weight:
0,7
kg per piece
365,00 EUR
Product No.: 293.063
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 50-63 mm for blind hole
290.063
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.063
Shippingtime:
on request
Weight:
3,5
kg per piece
405,00 EUR
Product No.: 290.063
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 62-75 mm
Order-No. 293.075
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 62 - 75 mm
distance to ground (C) 0,5 mm
dimension (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 62 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.075
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
4
kg per piece
378,00 EUR
Product No.: 293.075
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 62-75 mm for blind hole
290.075
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.075
Shippingtime:
on request
Weight:
4
kg per piece
435,00 EUR
Product No.: 290.075
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 75-88 mm
Order-No. 293.088
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 75 - 88 mm
distance to ground (C) 0,5 mm
dimension (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 87 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.088
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
4,3
kg per piece
399,00 EUR
Product No.: 293.088
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 75-88 mm for blind hole
290.088
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.088
Shippingtime:
on request
Weight:
4,3
kg per piece
450,00 EUR
Product No.: 290.088
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, measuring range 87-100 mm
Order-No. 293.100
Digital three-point measuring micrometer centering self and aligning self
Digital three-point inside micrometer for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
range 87 - 100 mm
distance to ground (C) 0,5 mm
dimension (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 87 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.100
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
4,6
kg per piece
429,00 EUR
Product No.: 293.100
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer 87-100 mm for blind hole
290.100
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.100
Shippingtime:
on request
Weight:
2,4
kg per piece
475,00 EUR
Product No.: 290.100
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 6-10 mm
Order-No. 293.710
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
reading 0,001 mm
complete measuring range 6 - 10 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 6 - 8 mm, dimension (C) 1 mm, (L) 40 mm
measuring range 8 - 10 mm, dimension (C) 1 mm, (L) 40 mm
accuracy 0,004 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 8 mm
with extension, length 50 Ø 5,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.710
Weight:
1,8
kg per piece
480,00 EUR
Product No.: 293.710
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 8-12 mm
Order-No. 293.712
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
reading 0,001 mm
complete measuring range 8 - 12 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 8 - 10 mm, dimension (C) 1 mm, (L) 40 mm
measuring range 10 - 12 mm, dimension (C) 1 mm, (L) 40 mm
accuracy 0,004 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 10 mm
with extension, length 50 Ø 5,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.712
Weight:
1,8
kg per piece
480,00 EUR
Product No.: 293.712
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 12-20 mm
Order-No. 293.720
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 12 - 20 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 12 - 16 mm, dimension (C) 0,4 mm, (L) 45 mm
measuring range 16 - 20 mm, dimension (C) 0,4 mm, (L) 45 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 16 mm
with extension, length 100 Ø 11,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.720
Weight:
1,8
kg per piece
510,00 EUR
Product No.: 293.720
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 20-30 mm
Order-No. 293.730
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 20 - 30 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 20 - 25 mm, dimension (C) 0,4 mm, (L) 53 mm
measuring range 25 - 30 mm, dimension (C) 0,4 mm, (L) 53 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 25 mm
with extension, length 150 Ø 16,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.730
Weight:
1,8
kg per piece
525,00 EUR
Product No.: 293.730
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 30-50 mm
Order-No. 293.750
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 30 - 50 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 30 - 40 mm, dimension (C) 0,4 mm, (L) 67 mm
measuring range 40 - 50 mm, dimension (C) 0,4 mm, (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 40 mm
with extension, length 150 Ø 16,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.750
Weight:
3
kg per piece
575,00 EUR
Product No.: 293.750
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 50-75 mm
Order-No. 293.775
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 50 - 75 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 50 - 63 mm, dimension (C) 0,5 mm, (L) 67 mm
measuring range 62 - 75 mm, dimension (C) 0,5 mm, (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 62 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.775
Weight:
4,7
kg per piece
610,00 EUR
Product No.: 293.775
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer 75-100 mm
Order-No. 293.800
Digital three-point measuring micrometer centering self and aligning self
digital three-point inside micrometer set
with exchangeable measuring heads
for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 75 - 100 mm with
one
digital head and
two
measuring heads
for a digital three-point internal micrometer
measuring range 75 - 88 mm, dimension (C) 0,5 mm, (L) 67 mm
measuring range 87 - 100 mm, dimension (C) 0,5 mm, (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 87 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Product No.: 293.800
Weight:
3
kg per piece
675,00 EUR
Product No.: 293.800
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer set, complete measuring range 6-12 mm
Order-No. 293.512
Digital three-point measuring micrometer centering self and aligning self
3-pieces digital three-point inside micrometer set for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
reading 0,001 mm
complete measuring range 6 - 12 mm with
three
single digital three-point internal micrometer
measuring range 6 - 8 mm, dimension (C) 1 mm, (L) 40 mm
measuring range 8 - 10 mm, dimension (C) 1 mm, (L) 40 mm
measuring range 10 - 12 mm, dimension (C) 1 mm, (L) 40 mm
accuracy 0,004 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 8 mm, Ø 10 mm
with extension, length 50 Ø 5,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.512
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
1,8
kg per piece
865,00 EUR
Product No.: 293.512
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer set 6-12 mm for blind hole
290.512
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.512
Shippingtime:
on request
Weight:
1,8
kg per piece
870,00 EUR
Product No.: 290.512
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer set, complete measuring range 12-20 mm
Order-No. 293.520
Digital three-point measuring micrometer centering self and aligning self
2-pieces digital three-point inside micrometer set for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 12 - 20 mm with
two
single digital three-point internal micrometer
measuring range 12 - 16 mm, dimension (C) 0,4 mm, (L) 45 mm
measuring range 16 - 20 mm, dimension (C) 0,4 mm, (L) 45 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 16 mm
with extension, length 100 Ø 11,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.520
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
1,8
kg per piece
505,00 EUR
Product No.: 293.520
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer set 12-20 mm for blind hole
290.520
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.520
Shippingtime:
on request
Weight:
1,8
kg per piece
570,00 EUR
Product No.: 290.520
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer set, complete measuring range 20-50 mm
Order-No. 293.550
Digital three-point measuring micrometer centering self and aligning self
4-pieces digital three-point inside micrometer set for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 20 - 50 mm with
four
single digital three-point internal micrometer
measuring range 20 - 25 mm, dimension (C) 0,4 mm, (L) 53 mm
measuring range 25 - 30 mm, dimension (C) 0,4 mm, (L) 53 mm
measuring range 30 - 40 mm, dimension (C) 0,4 mm, (L) 67 mm
measuring range 40 - 50 mm, dimension (C) 0,4 mm, (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 25 mm, Ø 40 mm
with extension, length 150 Ø 16,7 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.550
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
4,9
kg per piece
1.075,00 EUR
Product No.: 293.550
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer set 20-50 mm for blind hole
290.550
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.550
Shippingtime:
on request
Weight:
4,9
kg per piece
1.135,00 EUR
Product No.: 290.550
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer set, complete measuring range 50-100 mm
Order-No. 293.600
Digital three-point measuring micrometer centering self and aligning self
4-pieces digital three-point inside micrometer set for blind hole bore suitable (dimension C)
drum and sleeve satin chrome finished
with carbide measuring faces
reading 0,001 mm
complete measuring range 50 - 100 mm with
four
single digital three-point internal micrometer
measuring range 50 - 63 mm, dimension (C) 0,5 mm, (L) 67 mm
measuring range 62 - 75 mm, dimension (C) 0,5 mm, (L) 67 mm
measuring range 75 - 88 mm, dimension (C) 0,5 mm, (L) 67 mm
measuring range 87 - 100 mm, dimension (C) 0,5 mm, (L) 67 mm
accuracy 0,005 mm ( at full contact of the measuring faces !! )
ON / OFF button
Zeroing in any position
switchable mm/inch
ABS button (Absolute measurement / Relative measurement)
Hold function (measured data can be kept)
Preset function (setting a numerical value)
with button cell LR44 1,5V
with
data output (RB 4)
with setting ring gauge Ø 62 mm, Ø 87 mm
with extension, length 150 Ø 21,8 mm for measuring deep bores
with setting
Ident number
operation instructions
in case / box
Remaining stock !! Only valid while stocks last !!
Product No.: 293.600
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5,6
kg per piece
1.325,00 EUR
Product No.: 293.600
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital 3 point inside micrometer set 50-100 mm for blind hole
290.600
for blind hole
with carbide measuring faces
satin chrome finished
with setting gauge and extension
in case
Product No.: 290.600
Shippingtime:
on request
Weight:
5,6
kg per piece
1.340,00 EUR
Product No.: 290.600
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 100 - 125 mm
293.125
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.125
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
575,00 EUR
Product No.: 293.125
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 100 - 125 mm, blind hole
293.126
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.126
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
645,00 EUR
Product No.: 293.126
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
SOLD OUT
Digital three point internal micrometer, 125 - 150 mm
293.150
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.150
Shippingtime:
on request
Weight:
5
kg per piece
575,00 EUR
Product No.: 293.150
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 125 - 150 mm, blind hole
293.151
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.151
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
645,00 EUR
Product No.: 293.151
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 150 - 175 mm
293.175
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.175
Weight:
5
kg per piece
Price on request
Product No.: 293.175
SOLD OUT
Digital three point internal micrometer, 150 - 175 mm, blind hole
293.176
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.176
Shippingtime:
on request
Weight:
5
kg per piece
709,00 EUR
Product No.: 293.176
Shippingtime:
on request
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 175 - 200 mm
293.200
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.200
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
609,00 EUR
Product No.: 293.200
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 175 - 200 mm, blind hole
293.201
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.201
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
709,00 EUR
Product No.: 293.201
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 200 - 225 mm
293.225
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.225
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
809,00 EUR
Product No.: 293.225
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 200 - 225 mm, blind hole
293.226
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.226
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
885,00 EUR
Product No.: 293.226
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 225 - 250 mm
293.250
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.250
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
809,00 EUR
Product No.: 293.250
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 225 - 250 mm, blind hole
293.251
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.251
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
885,00 EUR
Product No.: 293.251
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 250 - 275 mm
293.275
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.275
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
8
kg per piece
969,00 EUR
Product No.: 293.275
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 250 - 275 mm, blind hole
293.276
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.276
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
1.055,00 EUR
Product No.: 293.276
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 275 - 300 mm
293.300
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.300
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
8
kg per piece
969,00 EUR
Product No.: 293.300
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 275 - 300 mm, blind hole
293.301
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.301
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
1.055,00 EUR
Product No.: 293.301
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 300 - 325 mm
293.325
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.325
Weight:
8
kg per piece
Price on request
Product No.: 293.325
Digital three point internal micrometer, 300 - 325 mm, blind hole
293.326
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.326
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
1.419,00 EUR
Product No.: 293.326
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 325 - 350 mm
293.350
for be used for pass hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 18 mm / size (b) = 18 mm
in case
delivery
without
setting ring gauge
Product No.: 293.350
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
8
kg per piece
1.195,00 EUR
Product No.: 293.350
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Digital three point internal micrometer, 325 - 350 mm, blind hole
293.351
for be used for blind hole
with carbide measuring faces
scale and nonius satin chrome finished
reading 0,001 mm
distance to ground (c) 0,5 mm / size (b) = 19,7 mm
in case
delivery
without
setting ring gauge
Product No.: 293.351
Shippingtime:
approximately 3 - 7 Days
(abroad may vary)
Weight:
5
kg per piece
1.419,00 EUR
Product No.: 293.351
Shippingtime:
approximately 3 - 7 Days
plus 19% tax excl.
Shipping costs
Add to cart
Pistol-three-point inside measuring instrument, 6 - 12 mm
Order-No. 292.112
Digital three-point internal measuring instrument
Digital three-point inside micrometer with pistol grip and digital dial indicator in set 6-12 mm
for suitable
blind hole bore
(dimension A)
Total measuring range 6 - 12 mm
with a pistol grip (with digital dial indicator) and
three interchangeable
measuring range head 6-8 mm, dimension (A) 1,5 mm and (L) 50 mm
measuring range head 8-10 mm, dimension (A) 1,5 mm and (L) 50 mm
measuring range head 10-12 mm, dimension (A) 1,5 mm and (L) 50 mm
accuracy 0,009 mm ( at full contact of the measuring faces !! )
with digital dial indicator
measuring range 12,7 mm
display rotatable
reading 0,001 mm or 0,00005"
measuring direction reversible
clamp shank 8 h6
with setting ring Ø 8 mm and Ø 10 mm
with extension, length 100 mm for measuring deeper bores
operation instructions
Delivery:
- Pistol grip
- with the measuring heads above
- with setting ring gauge and extension
- with digital dial indicator
in case / box
For fast and efficient measurement of through holes and blind holes.
Usable for right-handed and left-handed !!
Product No.: 292.112
Weight:
1,9
kg per piece
Price on request
Product No.: 292.112
Pistol-three-point inside measuring instrument, 12 - 20 mm
Order-No. 292.120
Digital three-point internal measuring instrument
Digital three-point inside micrometer with pistol grip and digital dial indicator in set 12-20 mm
for suitable
blind hole bore
(dimension A)
measuring faces carbide tipped
Total measuring range 12 - 20 mm
with a pistol grip (with digital dial indicator) and
two interchangeable
measuring range head 12-16 mm, dimension (A) 0,5 mm and (L) 65 mm
measuring range head 16-20 mm, dimension (A) 0,5 mm and (L) 65 mm
accuracy 0,009 mm ( at full contact of the measuring faces !! )
with digital dial indicator
measuring range 12,7 mm
display rotatable
reading 0,001 mm or 0,00005"
measuring direction reversible
clamp shank 8 h6
with setting ring Ø 16 mm
with extension, length 150 mm for measuring deeper bores
operation instructions
Delivery:
- Pistol grip
- with the measuring heads above
- with setting ring gauge and extension
- with digital dial indicator
in case / box
For fast and efficient measurement of through holes and blind holes.
Usable for right-handed and left-handed !!
Product No.: 292.120
Weight:
2
kg per piece
Price on request
Product No.: 292.120
Pistol-three-point inside measuring instrument, 20 - 30 mm
Order-No. 292.130
Digital three-point internal measuring instrument
Digital three-point inside micrometer with pistol grip and digital dial indicator in set 20-30 mm
for suitable
blind hole bore
(dimension A)
measuring faces carbide tipped
Total measuring range 20 - 30 mm
with a pistol grip (without digital dial indicator) and
two interchangeable
measuring range head 20-25 mm, dimension (A) 0,5 mm and (L) 91 mm
measuring range head 25-30 mm, dimension (A) 0,5 mm and (L) 91 mm
accuracy 0,009 mm ( at full contact of the measuring faces !! )
with digital dial indicator
measuring range 12,7 mm
display rotatable
reading 0,001 mm or 0,00005"
measuring direction reversible
clamp shank 8 h6
with setting ring Ø 25 mm
with extension, length 150 mm for measuring deeper bores
operation instructions
Delivery:
- Pistol grip
- with the measuring heads above
- with setting ring gauge and extension
- without digital dial indicator
in case / box
For fast and efficient measurement of through holes and blind holes.
Usable for right-handed and left-handed !!
Product No.: 292.130
Weight:
1,4
kg per piece
Price on request
Product No.: 292.130
Pistol-three-point inside measuring instrument, 30 - 50 mm
Order-No. 292.150
Digital three-point internal measuring instrument
Digital three-point inside micrometer with pistol grip and digital dial indicator in set 30-50 mm
for suitable
blind hole bore
(dimension A)
measuring faces carbide tipped
Total measuring range 30 - 50 mm
with a pistol grip (without digital dial indicator) and
two interchangeable
measuring range head 30-40 mm, dimension (A) 0,5 mm and (L) 97 mm
measuring range head 40-50 mm, dimension (A) 0,5 mm and (L) 97 mm
accuracy 0,009 mm ( at full contact of the measuring faces !! )
with digital dial indicator
measuring range 12,7 mm
display rotatable
reading 0,001 mm or 0,00005"
measuring direction reversible
clamp shank 8 h6
with setting ring Ø 40 mm
with extension, length 150 mm for measuring deeper bores
operation instructions
Delivery:
- Pistol grip
- with the measuring heads above
- with setting ring gauge and extension
- without digital dial indicator
in case / box
For fast and efficient measurement of through holes and blind holes.
Usable for right-handed and left-handed !!
Product No.: 292.150
Weight:
4,2
kg per piece
Price on request
Product No.: 292.150
Pistol-three-point inside measuring instrument, 50 - 100 mm
Order-No. 292.200
Digital three-point internal measuring instrument
Digital three-point inside micrometer with pistol grip and digital dial indicator in set 50-100 mm
for suitable
blind hole bore
(dimension A)
measuring faces carbide tipped
Total measuring range 50 - 100 mm
with a pistol grip (without digital dial indicator) and
four interchangeable
measuring range head 50-63 mm, dimension (A) 0,5 mm and (L) 112 mm
measuring range head 63-75 mm, dimension (A) 0,5 mm and (L) 112 mm
measuring range head 75-88 mm, dimension (A) 0,5 mm and (L) 112 mm
measuring range head 87-100 mm, dimension (A) 0,5 mm and (L) 112 mm
accuracy 0,009 mm ( at full contact of the measuring faces !! )
with digital dial indicator
measuring range 12,7 mm
display rotatable
reading 0,001 mm or 0,00005"
measuring direction reversible
clamp shank 8 h6
with setting ring gauge Ø 62 mm and Ø 87 mm
with extension, length 150 mm for measuring deeper bores
operation instructions
Delivery:
- Pistol grip
- with the measuring heads above
- with setting ring gauge and extension
- without digital dial indicator
in case / box
For fast and efficient measurement of through holes and blind holes.
Usable for right-handed and left-handed !!
Product No.: 292.200
Weight:
10,2
kg per piece
Price on request
Product No.: 292.200
Sort by
Price ascending
Price descending order
Name ascending
Name descending order
Date added ascending
Date added descending order
Delivery time ascending
Delivery time descending order
Sort by
Price ascending
Price descending order
Name ascending
Name descending order
Date added ascending
Date added descending order
Delivery time ascending
Delivery time descending order
96 per page
96 per page
192 per page
288 per page
576 per page
1152 per page
96 per page
192 per page
288 per page
576 per page
1152 per page
1
1
to
66
(from a total of
66
)
{{#title}}
{{title}}
{{/title}}
{{{items.src}}}
{{#showButtons}} {{/showButtons}}
{{#content}}
{{.}}
{{/content}}
{{#content}}
{{{.}}}
{{/content}}
