Order-No. 293.016.IP65

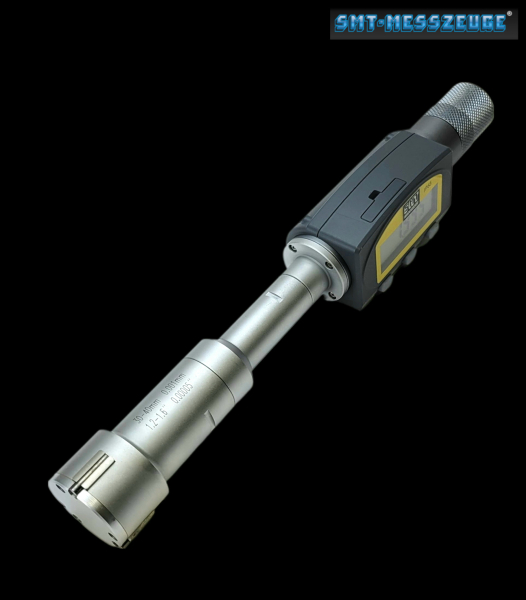

Digital internal micrometer with 3 points. The digital three-point internal micrometer is self-centring and self-aligning
and is ideal for measurements on blind bores, see dimension C in the drawing of the internal micrometer.
- IP65 protection class (water + dust)
- with large digital LCD display and readings
- digital reading 0,001 mm or 0,00005"
- measuring range 12 - 16 mm
- distance to ground (C) 0,5 mm
- dimension (A) 80 mm
- accuracy according to DIN 863 = 0,005 mm ( at full contact of the measuring faces !! )
- ON / CAL button
- Zeroing (reset) in any position
- switchable mm/inch
- Preset function (setting a numerical value)
- Hold function (measured data can be kept)
- with button cell CR 2032 voltage 3V
- with data output (RB 6)
- with setting ring gauge Ø 12 mm
- with extension, length 150 Ø 11,8 mm for measuring deeper holes
- with key and screwdriver
- Identification number
- with instruction manual
- in case / box
