Digital vertical micrometer, 25 - 50 x 30 mm, for measuring plastic or metal plates
Digital vertical micrometer, 25 - 50 x 30 mm, for measuring plastic or metal plates
Order-No. 241.495
- Precision Digital Micrometer for measuring sheets and bands
- measuring thimble chrome finished
- measuring spindel and measuring anvil flat
- with carbide measuring faces
- Measuring spindle Ø 6,5 mm
- thread lead 0,5 mm
- reading 0,001 mm / 0,00005"
- accuracy ± 2 µm = 0,002 mm
- Range 25 - 50 mm
- Throat depth (C) 30 mm
- lacquered frame
- with friction ratchet
- protection class IP65
- with heat insulation plate
- with clamp
- with ratchet ( measuring force 5 - 10 N )
- ON / OFF / SET - button
- On / OFF + automatic on/off after 7 minutes (if no action of the spindle)
- Zero setting possible at any position
- SET = (at the display to the origin)
- ABS / INC / UNIT - button
- ABS / INC = Conversion Absolute mode and relative mode
- UNIT = Conversion mm and inch
- with button cell LR44 Voltage1,5V
- without data output
- with identity number
- in transport case / box

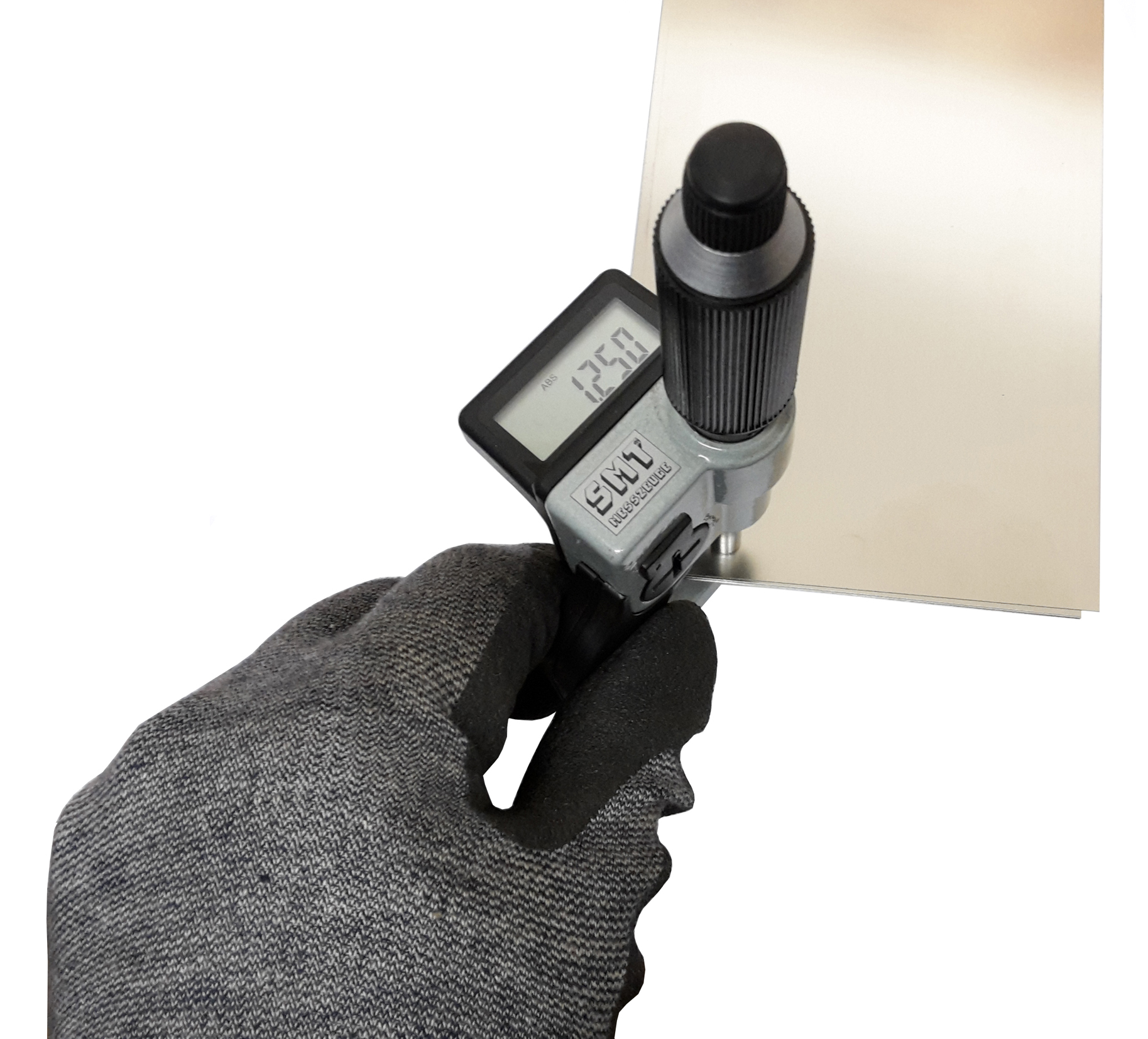

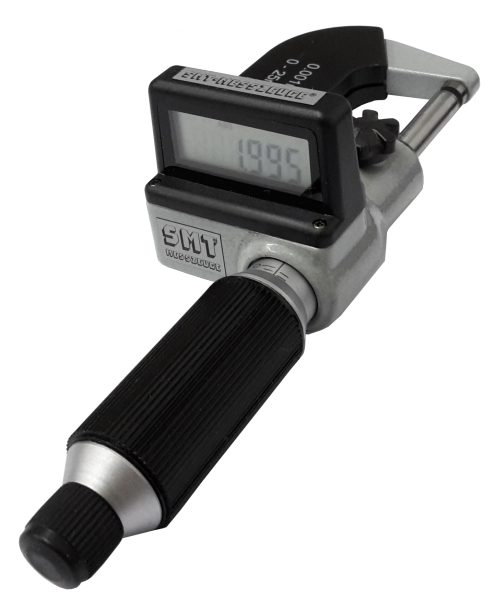

Precision vertical micrometer with digital display view twisted 90° for measuring thickness of sheet plastic or metal plates
